Table of Contents
- 1.1. Devices database and devices detection
- 1.2. URL rewriting
- 1.3. Multiserving and Adaptation
- 1.3.1. Image Server
- 1.4. Page structure and CMS integration
- 1.4.1. Mobile site map
- 1.4.2. Widgets
- 1.5. Themes
- 1.5.1. Theme structure
- 1.5.2. Styles
- 1.5.3. Pages definition
- 1.5.4. Theme widgets
- 1.6. MWT APIs
- 1.6.1. Device control APIs
- 1.6.2. URL generation APIs
- 1.6.3. Widget state and configuration APIs
- 1.6.4. Helper APIs
- 1.6.5. Using MWT APIs in PHP scripts
- 1.7. Caches
Devices detection is one of MWT's main features and it is crucial for the adaptation and multiserving engine.
MWT features a comprehensive devices database that cointains informations about several hundreds device models.

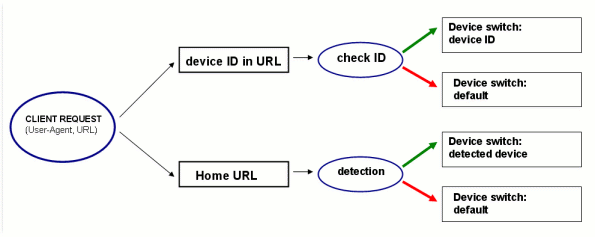

Before serving content MWT elaborates the User-Agent string of the client requesting a connection and performs database lookups in order to identify the device model. If identification succeeds MWT's device switch operation triggers: the system generates a cookie that will be used automatically to identify and to serve further requests from the same client based on it characteristics.
The main features of detection engine are listed below:
- User-Agent manipulation algorithm to optimize database lookups
- Detection is performed only once, a cookie enables MWT to "remember" an already detected client
- If a valid device ID is present in the requested URL (see paragrah URL rewriting) the detection engine triggers a device switch operation without performing detection
- At any time it is possible to force a device switch in order to navigate a mobile site version rendered for a specific device
- If device detection fails or an invalid device ID is present in the requested URL the systems falls back to a default device
